Yaskawa Motoman MH250 DX100 Robotic Cell – 6-Axis Press Brake Automation System
Complete Robotic Handling Cell with Dual Lift Tables, Suction Gripper, and Safety Enclosure
🏭 Description

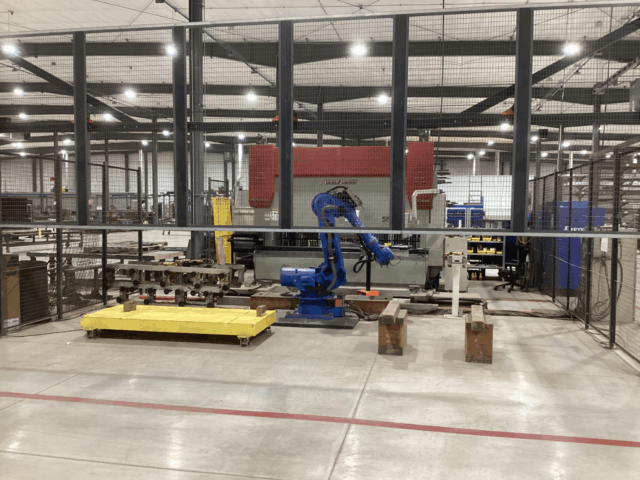

For sale is a Yaskawa Motoman MH250 industrial robotic cell equipped with a DX100 controller, two 500 lb lift tables, vacuum gripper, and a complete safety enclosure.
This setup was professionally integrated for press brake loading and unloading and can easily be repurposed for material handling, sheet stacking, palletizing, or CNC tending applications.
The robot and controller are in good working order — pulled directly from a low-hour, single-shift operation.
Everything has been kept clean and fully functional.
Press brake not included.
See video and photos for full configuration.
⚙️ Technical Specifications
| Component | Details |
|---|---|
| Robot Model | Yaskawa Motoman MH250-2011 |
| Controller | DX100 |
| Axes | 6 |
| Payload Capacity | 250 kg (550 lb) |
| Horizontal Reach | 2,710 mm (106.7 in) |
| Repeatability | ±0.2 mm |
| Mounting Type | Floor-mounted |
| Robot Weight | ~1,130 kg (2,490 lb) |
| Protection | Wrist IP67 (dust & splash resistant) |
| Lift Tables | 2 × hydraulic lift tables, 500 lb capacity each |
| End-of-Arm Tooling (EOAT) | Suction-cup gripper for flat/sheet handling |
| Safety Enclosure | Interlocked security fencing and access gate |
| Electrical | 480 V, 3-phase (DX100 dependent) |
🔩 Included Equipment
-
Yaskawa Motoman MH250 six-axis robot arm (2011 model)
-
DX100 controller and teach pendant
-
Two 500-lb capacity hydraulic lift tables
-
Vacuum/suction-cup gripper assembly
-
Safety/security enclosure with interlocks
-
Existing cables, dress package, and mounting hardware
🧠 Condition
-
Year: 2011
-
Condition: Good, tested and functional
-

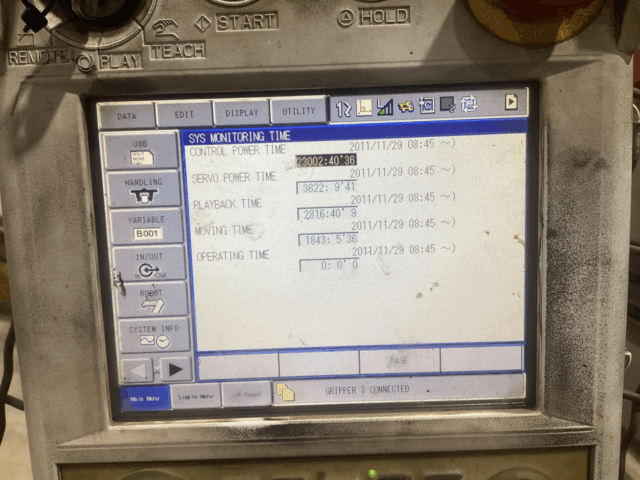

Usage: Single-shift, low cycle count
-
Application: Sheet metal handling for press brake
-
Inspection: Available for demo under power
-
Press brake not included
🚀 Applications
This system is ideal for:
-
Press brake tending / automation
-
Material handling and part stacking
-
Machine loading and unloading
-
Sheet and plate handling
-
Palletizing / depalletizing heavy goods
-
Automated cell integration for CNCs or forming lines
💰 Pricing & Location
-
Asking price: $[enter price] (negotiable)
-
Location: [City, State]
-
Available for inspection: Yes
-
Freight / Rigging: Buyer responsible (loading assistance available)
📹 See Video
Watch the MH250 robotic cell in action — [Yaskawa Motoman MH250 DX100 Robotic Cell Demo Video
